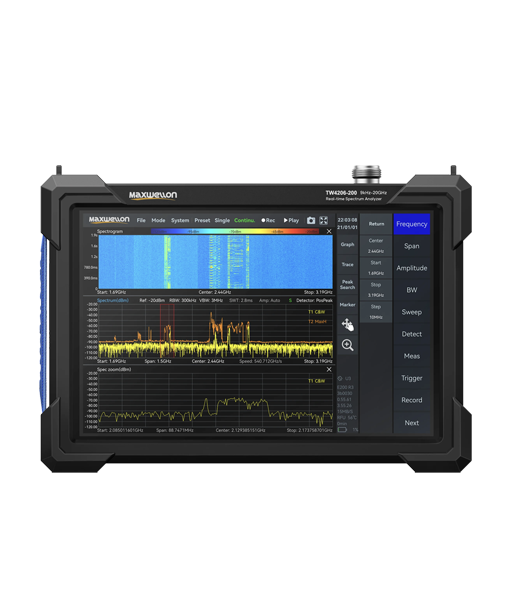

TW4206 Handheld Real-Time Spectrum Analyzer

Maxwellon TW4206 Handheld Real-Time Spectrum Analyzer is a portable, high-performance spectrum analyzer. The frequency measurement range covers up to 40GHz. The main technical indicators and solid RF performance are comparable to benchtop instruments. The device features a 10.1-inch multi-touch display and weighs as little as 1.5 kg, enabling effortless single-handed operation, which is especially suitable for field testing and mobile signal monitoring. The product supports a standard 100 MHz analysis bandwidth to meet modern wideband signal testing needs. It comes standard with advanced measurement functions such as channel power, phase noise, and AM/FM demodulation, providing premium performance without additional licensing costs.

Key Feature

◼︎ Frequency range: 9 kHz - 9.5 GHz / 20 GHz / 40 GHz

◼︎ Analysis bandwidth: Standard 100 MHz

◼︎ Sensitive, DANL up to -167.5 dBm/Hz

◼︎ Fast sweep speed: Approx. 1.1 THz/s (RBW=250 kHz)

◼︎ Portable design: 10.1-inch touch screen, weight 1.5kg
