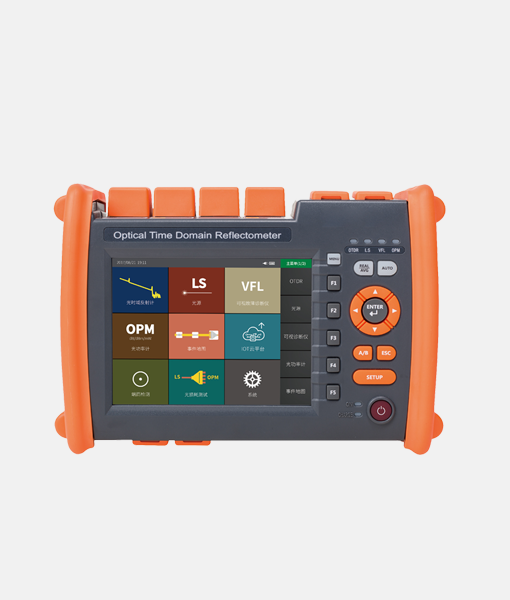

Maxwellon TF2105 PON OTDR is a multifunctional optical time domain reflectometer equipped with a 5.6-inch color screen and a high dynamic range of up to 45 dB. It is capable of penetrating up to 132 optical splitters in PON network testing. The device integrates multiple functions including Visual Fault Locator (VFL), Event Map, Optical Power Meter, Light Source, Optical Loss Test, and Optical End-Face Inspection — all in one compact unit designed to streamline field testing and maintenance.
Key Features
◼︎ 0.8m event blind area, easy to test 5m jumper
◼︎ Detection of online test, automatic alarm with light
◼︎ Unique automatic diagnosis function of test results
◼︎ Batch processing of data and printing report forms
◼︎ Key + touch screen dual operation mode
| Wavelength | 1310nm±20nm/ 1550nm±20nm/ 1625±10nm/ 1650+5nm |
| Dynamic Range | 36 - 42dB |
| Event Blind Zone | 1m |
| ATT Blind Zone | 6m |
| Test Range | 500m/ 1km/ 2km/ 4km/ 8km/ 16km/ 32km/ 64km/ 128km/ 256k |
| Pulse Width | 5ns/ 10ns/ 30ns/ 50ns/ 80ns/ 160ns/ 320ns/ 500ns/ 800ns/ 1000ns/ 3000ns/ 5000ns/ 8000ns /10000ns/ 20000n |
| Sampling Points | 16k ~ 256 |
For more detailed information, please download the PDF Datasheet above.
