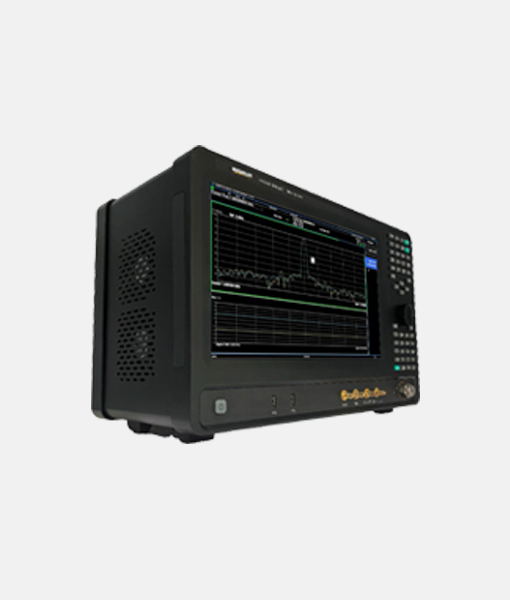

TW4207D Signal Analyzer

The Maxwellon TW4207D is a high-performance benchtop signal analyzer designed to meet the rigorous demands of modern RF and microwave testing. Covering a continuous frequency range from 100 kHz to 44 GHz, it delivers laboratory-grade precision in a compact, portable form factor weighing less than 10 kg.

Key Feature

◼︎ Frequency Range: 100 kHz to 44 GHz.

◼︎ Sensitivity (DANL): -160 dBm/Hz (Typical, Preamp On).

◼︎ Phase Noise: -106 dBc/Hz @ 10 kHz offset (1 GHz CF).

◼︎ Analysis Bandwidth: 25 MHz standard (upgradable to 40 MHz).

◼︎ Amplitude Accuracy: ±0.40 dB absolute accuracy.
