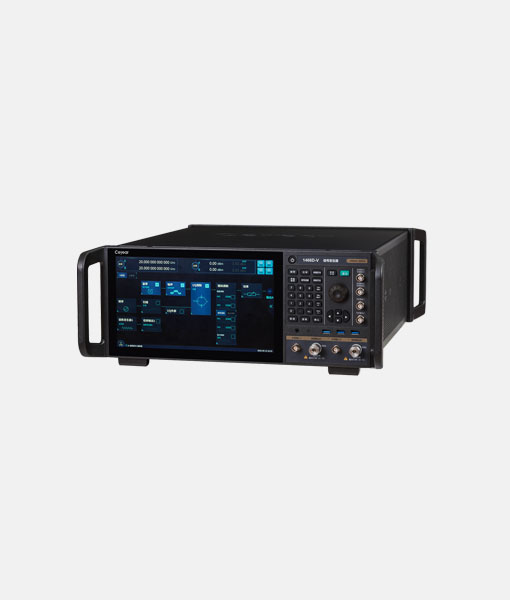

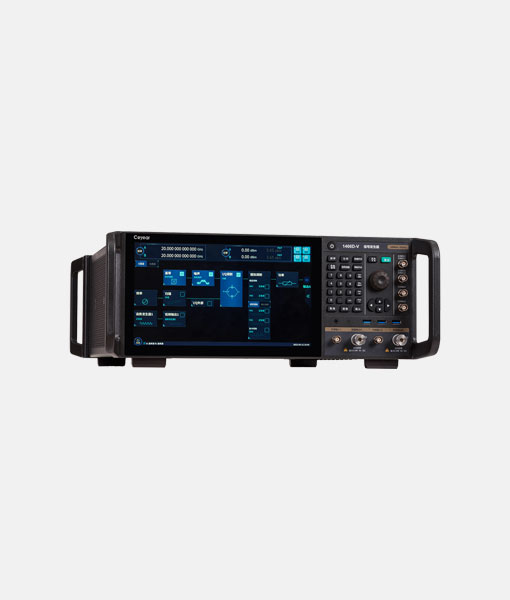

The Maxwellon 1466V series signal generator is a high-end universal testing instrument for microwave and millimeter waves. It has the advantages of wide frequency range coverage, large RF modulation bandwidth, and high signal spectral purity. With a single machine dual RF channel and multi machine cascade design, it can meet your various testing requirements. The rich built-in functions of analog modulation, digital modulation, fading simulation, AWGN, etc. make daily testing more convenient. Collaborate with simulation software to achieve multi scene signal simulation, making it easy to test complex scenarios such as wireless communication and mobile communication.
Key Features
◼︎ 6kHz~13GHz/20GHz/33GHz/45GHz/53GHz/67GHz
◼︎ SSB：-132 dBc/Hz
◼︎ Maximum 2GHz RF modulation bandwidth
◼︎ 30 digital modulation styles
◼︎ Excellent vector modulation accuracy, EVM<0.8% (5GNR, FR2 28GHz)
Frequency Properties | |||
Frequency Range | 1466V-C: 6kHz~13GHz 1466V-D: 6kHz~20GHz 1466V-E: 6kHz~33GHz 1466V-G: 6kHz~45GHz 1466V-H: 6kHz~53GHz 1466V-L: 6kHz~67GHz | Frequenc | N (Internal YO harmonic number) |
6kHz≤f≤10MHz | / | ||
10MHz<f≤50MHz | / | ||
50MHz<f≤62.5MHz | 1/256 | ||
62.5MHz<f≤125MHz | 1/128 | ||
125MHz<f≤250MHz | 1/64 | ||
250MHz<f≤500MHz | 1/32 | ||
500MHz<f≤1GHz | 1/16 | ||
1GHz<f≤2GHz | 1/8 | ||
2GHz<f≤4GHz | 1/4 | ||
4GHz<f≤8GHz | 1/2 | ||
8GHz<f≤20GHz | 1 | ||
20GHz<f≤40GHz | 2 | ||
40GHz<f≤67GHz | 4 | ||
Frequency Resolution | 0.001Hz | ||
Frequency Switching Time | <15ms | ||
Timebase Aging Rate (typical value) | ±5×10 -10 /day (after 30-day continuous power-on) | ||
Reference Output | Frequency | 10MHz | |
Power | >+4dBm to 50 Ω load | ||
Reference Input | Frequency | 1 ~ 100MHz , steps of 1Hz | |
Power | -5dBm ~ +10dBm, 50Ω Impedance | ||
For more detailed information, please download the PDF Datasheet above.
 | Excellent Spectral Purity High-purity spectrum signal output: SSB -145 dBc/Hz (typical value, 1 GHz carrier 10kHz frequency offset); SSB -132 dBc/Hz (typical value, 10 GHz carrier 10kHz frequency offset); SSB -161 dBc/Hz (typical value, 20 GHz carrier 30kHz frequency offset); Spurious<-80 dBc (10 GHz carrier); Harmonic<-55dBc. |
Excellent Vector Modulation Accuracy
2GHz RF Modulation Bandwidth
Excellent vector modulation accuracy
QPSK modulation EVM measured value of 0.4% (2GHz carrier).
Excellent adjacent power ratio
5GNR ACPR< -55dBc@2GHz Carrier (typical value)
-45dBc@42.5GHz Carrier (typical value)
Model
Model | Name | Description |
1466V-C | Vector Signal Generator | 6kHz~13GHz |
1466V-D | Vector Signal Generator | 6kHz~20GHz |
1466V-E | Vector Signal Generator | 6kHz~33GHz |
1466V-G | Vector Signal Generator | 6kHz~45GHz |
1466V-H | Vector Signal Generator | 6kHz~53GHz |
1466V-L | Vector Signal Generator | 6kHz~67GH |
For more detailed information, please download the PDF Datasheet above.
