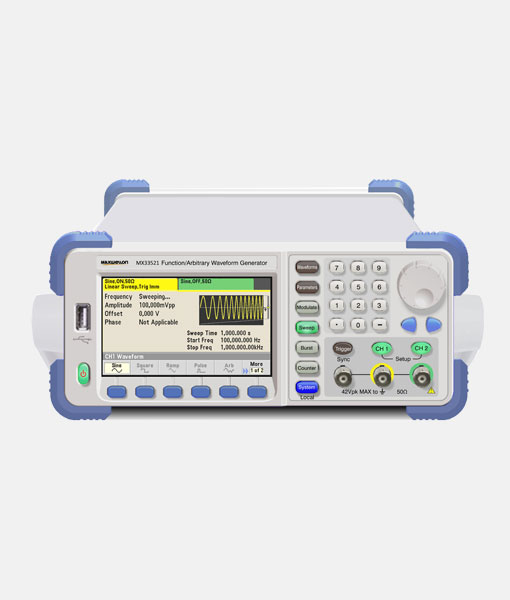

The MX33521 series function/Arbform generator is a signal generator that utilizes extended high-precision differential technology. Compared with previous DDS signal generators, it has excellent performance, fidelity, and flexibility. It can be equipped with any waveform signal generation module. Help you accelerate development speed, improve product quality and reliability.
Key Features
◼︎low distortion and low jitter output
◼︎Accurate pulse and square wave waveform
◼︎The total harmonic distortion is as low as 0.2%.
◼︎The large signal amplitude can reach 20Vpp (High Z, ≤ 20MHz).
◼︎The small signal amplitude can reach 1mVpp (50 Ω).
| Waveform | |
| Standard | Sine, Square, Ramp, Pulse, Noise, Arb, DC Built-in Arbform More than 50 Arbforms, including exponential decline, exponential rise, Gaussian pulse, logarithm, etc |
| User defined Arbform | 8-16384 points (CH1); 8-2048 points (CH2) |
| Sampling rate | 150MSa/s |
Working Mode and Modulation Type | |
| Working Mode | Point Frequency, Modulation (CH1), Sweep (Sweep CH1), Burst (Burst CH1), Counter, Sweeper, Power Meter |
| Modulation Type | Modulation Type |
For more detailed information, please download the PDF Datasheet above.
The MX33521 series function/Arbform generator is a signal generator that utilizes extended high-precision differential technology. Compared with previous DDS signal generators, it has excellent performance, fidelity, and flexibility. It can be equipped with any waveform signal generation module. Help you accelerate development speed, improve product quality and reliability.
For more detailed information, please download the PDF Datasheet above.
