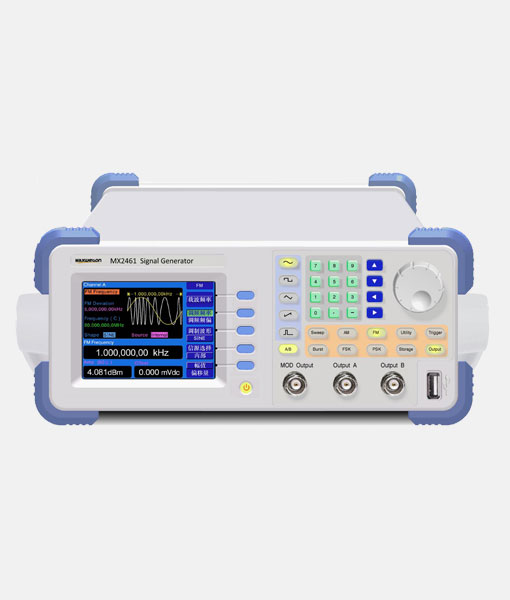

MX2461 Digital Synthetic High Frequency Standard Signal Generator, with a resolution of up to 1μHz (fc ≤ 80MHz), 1Hz (fc>80MHz). Frequency coverage of 100μHz~600MHz, with a level coverage of -127dBm ~ +13dBm, optional USB interface and GPIB interface. The panel adopts a 3.5 “QVGA color LCD display, making operation more intuitive and convenient. It is a new generation of high-performance synthetic signal generator.
Key Features
◼︎3.5 "QVGA color LCD displayl, clear reading and easy operation
◼︎Digital modulation technology
◼︎Equipped with A and B output functions
◼︎120dB programmable attenuation, achieving microvolt signal output
◼︎Automatic level control circuit, effectively ensuring stable output amplitude
◼︎SMT process production with high reliability
◼︎Equipped with RS232 interface, optional USB and GPIB interfaces
| Frequency Characteristics | |
| Frequency Range | 100μHz~80MHz (MX2461-8) 100μHz~110MHz (MX2461-11) 100μHz~150MHz (MX2461-15) 100μHz~200MHz (MX2461-20) 100μHz~300MHz (MX2461-30) 100μHz~600MHz (MX2461-60 |
| Frequency Resolution | 1µHz(fc≤80MHZ); 1Hz(fc>80MHz) |
| Frequency Stability | ±5×10-6 |
| Output Power Range | -127dBm~+13dB |
| Output Level Resolution | 0.1dB |
| Attenuation Accuracy | ±2dB |
For more detailed information, please download the PDF Datasheet above.
MX2461 Digital Synthetic High Frequency Standard Signal Generator, with a resolution of up to 1μHz (fc ≤ 80MHz), 1Hz (fc>80MHz). Frequency coverage of 100μHz~600MHz, with a level coverage of -127dBm ~ +13dBm, optional USB interface and GPIB interface. The panel adopts a 3.5 “QVGA color LCD display, making operation more intuitive and convenient. It is a new generation of high-performance synthetic signal generator.
For more detailed information, please download the PDF Datasheet above.
